The advantages and features of the oil-free vortex air compressor

The core advantages of the oil-free vortex air compressor can be summarized as being fully clean, highly energy-efficient, low-maintenance, and stable in operation. It is suitable for scenarios with strict requirements for the air source and is an excellent entry point for foreign trade promotion and technical communication.

Core features and advantages

Dimension Key Advantage Technical Support Value Highlights

?? Air Quality 100% Oil-Free Pure Air No oil participation in the compression process, no contact between the moving and static vortices Complies with ISO 8573-1 Class 0 oil-free certification, meeting the mandatory requirements for clean air sources in industries such as food, medicine, electronics, and precision spraying

⚡ Energy Saving and Consumption Reduction Highly Efficient Energy Saving Continuous compression with meshing of the vortices, low leakage loss; high efficiency at partial loads Compared to piston type, energy savings of 10%-20% are achieved; compatible with frequency conversion adjustment, output can be adjusted as needed to reduce energy consumption

??️ Maintenance Friendly Low Maintenance Cost No oil lubrication, no wear parts (no valve plates, no oil filters) Annual maintenance time is approximately 1.5 hours; no need to handle waste oil, environmentally friendly and labor-saving

?? Operating Experience Low Noise and Low Vibration Parallel compression in multiple chambers, smooth torque variation; no reciprocating knocking Noise as low as 47dB(A) (3.7kW model), low vibration, suitable for environments sensitive to the environment such as laboratories and clean workshops

?? Stable and Durable Reliable Structure Highly precise meshing of the moving and static vortices, no contact friction Components are approximately 90% less than those of screw type, long service life, and strong continuous operation

?? Scene Adaptability Compact and Portable Integrated mechanical and electrical design, small size, light weight Installation space is small, flexible layout is possible, suitable for mobile workstations or factory layouts with limited space

Technical Principle Overview

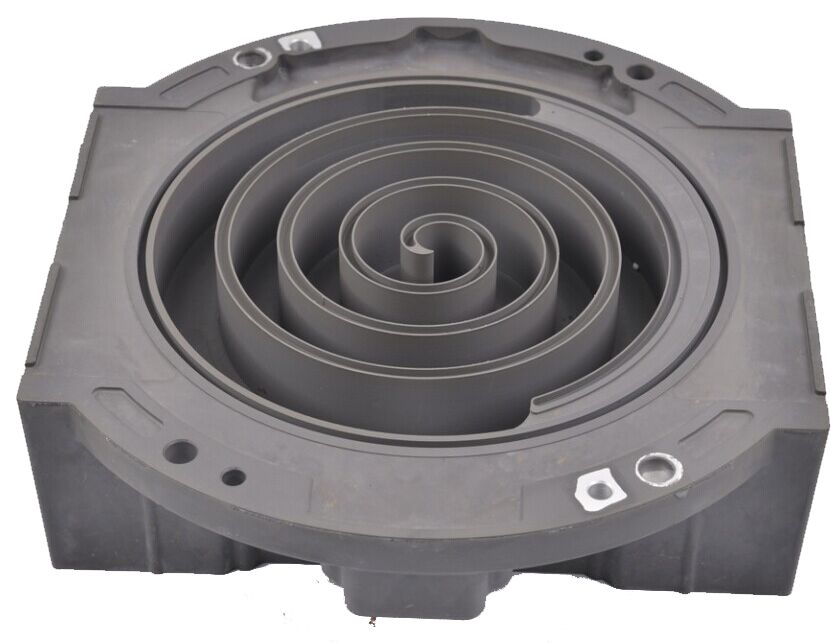

Through the meshing of the moving and static vortices to form multiple closed crescent-shaped compression chambers, the moving vortices rotate around the static vortices in a small radius plane motion, allowing the air to complete the continuous process of inhalation → compression → exhaust. There is no oil contact throughout the process, ensuring pure air source and reducing mechanical wear.

Key Selling Points for Foreign Trade Promotion

Cleanliness Certification: Provide Class 0 oil-free certification documents, precisely matching the air source compliance requirements of industries such as food, medicine, and electronics.

Energy Saving Value: Compare with the energy consumption data of traditional models, highlight the 10%-20% energy-saving effect and low maintenance costs, emphasizing the economic benefits throughout the life cycle.

Environmentally Friendly: Emphasize low noise and no oil leakage, compatible with strict environmental standards of the European and American markets.

Stable and Reliable: Highlight the design without wear parts and long service life advantages, reducing the risk of later operation for customers.

Applicable Industries

Food and beverage, pharmaceuticals, precision electronics, laboratories, precision spraying, printing, chemical industries, etc., which have extremely high requirements for compressed air quality.

Summary

The oil-free vortex air compressor has clean air source as its core competitiveness, combined with energy saving, low maintenance, and low noise advantages, having strong competitiveness in the segmented market. In foreign trade promotion, it can be combined with the compliance standards of target industries and energy consumption pain points to highlight product certification and full life cycle value, improving the probability of closing deals.
