Comparison between AC frequency machine and variable frequency machine

The industrial-grade screw air compressors and permanent magnet variable-frequency screw air compressors, as common power equipment in industry, have core differences mainly in key aspects such as the power system, energy-saving effect, and operational stability. The following provides a detailed comparison from multiple perspectives to assist enterprises in choosing the appropriate equipment based on their gas usage requirements.

I. Core Configuration Comparison

Power frequency screw air compressor: It uses an ordinary asynchronous motor, coupled with a fixed-speed drive method. There is no variable frequency control system. The gas supply is regulated by start-stop or unload valves. The transmission mostly uses belts or couplings for connection, resulting in certain transmission losses. The rotor profile of the main unit is of conventional design, and the oil-gas separation system is the basic model. The protection level is mostly IP54 or below.

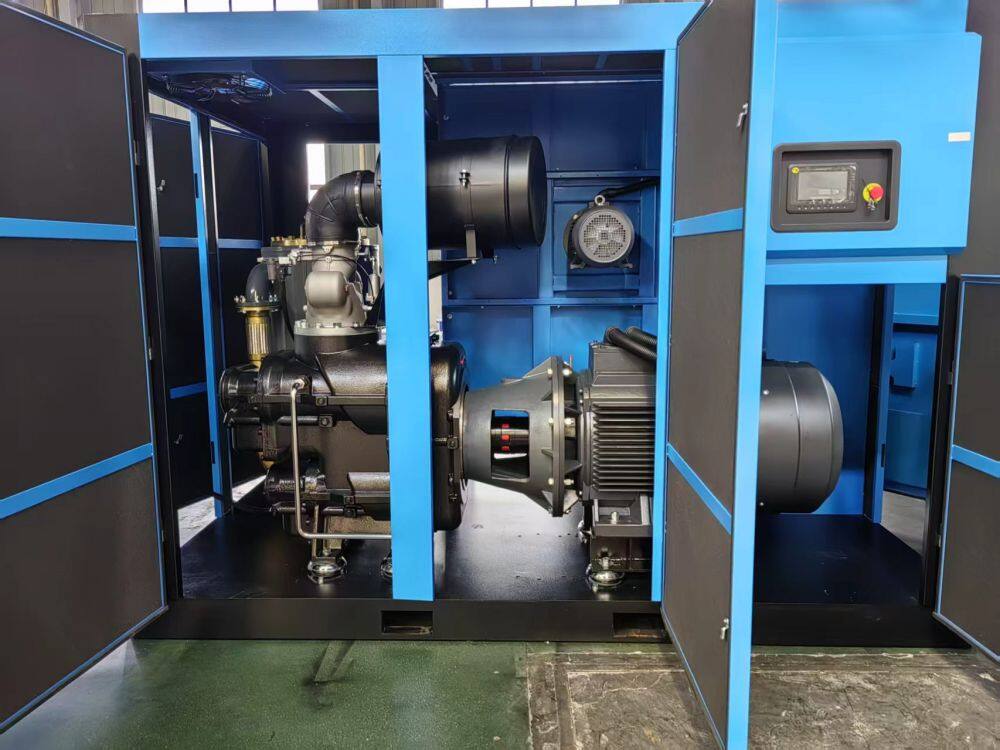

Permanent magnet variable-frequency screw air compressor: Equipped with rare-earth permanent magnet synchronous motor, without excitation coil, combined with intelligent variable-frequency control system, it can achieve stepless speed regulation; adopts 1:1 direct drive, without transmission loss, the main unit adopts optimized rotor profile, combined with efficient oil-gas separation system, some models can reach IP65 protection level, the motor adopts fully enclosed design, eliminating the risk of demagnetization.

II. Energy-saving Effect Comparison

AC frequency conversion screw air compressor: The motor always operates at the rated speed, regardless of the air consumption. The energy consumption remains basically constant. In low-load conditions (where the air demand is less than 70%), the pressure needs to be released through the relief valve. Even in the no-load state, the energy consumption still reaches 30% - 50% of the rated power. The overall energy efficiency is mostly at the second level or below, and the long-term electricity cost is relatively high.

Permanent magnet variable-frequency screw air compressor: It can dynamically adjust the motor speed according to the actual gas consumption. When the gas consumption decreases, the speed will decrease simultaneously, resulting in reduced energy consumption. Even under low-load conditions, the energy efficiency remains above 90%. Compared with the frequency conversion machine, it can achieve a comprehensive energy saving of 30% - 50%. The entire series meets the first-level energy efficiency standard. The equipment price difference can be recovered within 1-2 years. Long-term use can significantly reduce electricity expenses.

III. Comparison of Operating Stability and Lifespan

AC screw air compressor: The startup method is direct start, which causes significant impact on the power grid. Frequent start-stop operations can lead to mechanical wear. The main unit's major overhaul cycle is approximately 20,000 - 30,000 hours. The motor lifespan is about 5 - 8 years. The air pressure accuracy is approximately ±0.05 MPa. Pressure fluctuations are prone to occur, affecting the gas supply for precision production.

Permanent magnet variable-frequency screw air compressor: It adopts a soft-start design, eliminating grid impact and reducing mechanical wear. The main unit's overhaul cycle can exceed 40,000 hours, and the motor lifespan exceeds 10 years. It is equipped with PID control algorithm, ensuring the air pressure accuracy at ±0.01 MPa, with small pressure fluctuations, which can guarantee the stability of gas supply and has lower operating noise (≤ 65 dB), making it more suitable for scenarios such as workshops where noise control is required.

IV. Comparison of Operations and Maintenance

Power frequency screw air compressor: The operation mode is mainly manual or simple automatic. It has no remote monitoring function. It requires manual supervision for adjustment. The maintenance frequency is high, and regular checks on belt wear, unloading valve operation status, etc. are necessary. The maintenance cost is moderate.

Permanent magnet variable-frequency screw air compressor: Integrated EPC intelligent control system, supporting local operation and remote monitoring, featuring fault alarm, intelligent temperature control, multi-machine linkage functions, enabling unmanned operation; maintenance is convenient, without the need for frequent checks on transmission components, only requiring regular replacement of filters and lubricating oil, with maintenance costs 20%-30% lower than those of frequency conversion machines.

V. Comparison of Applicable Scenarios

AC frequency screw air compressor: Suitable for scenarios with stable gas demand (load rate ≥ 80%), low energy consumption requirements, and limited budget, such as small manufacturing plants, construction sites, and other scattered gas usage scenarios.

Permanent magnet variable-frequency screw air compressor: Suitable for scenarios with significant fluctuations in gas demand (load rate ranging from 30% to 100%), high requirements for energy consumption and gas accuracy, such as in industries like electronics and semiconductors, food and pharmaceuticals, automotive manufacturing, and precision processing. It is also suitable for indoor workshops with high requirements for noise and protection.
